Professional Charging Pile Customization Factory

With our cloud platform, you can monitor and manage your charging pile operations remotely, achieving intelligent management.

Contact Us

22kw EV Charger

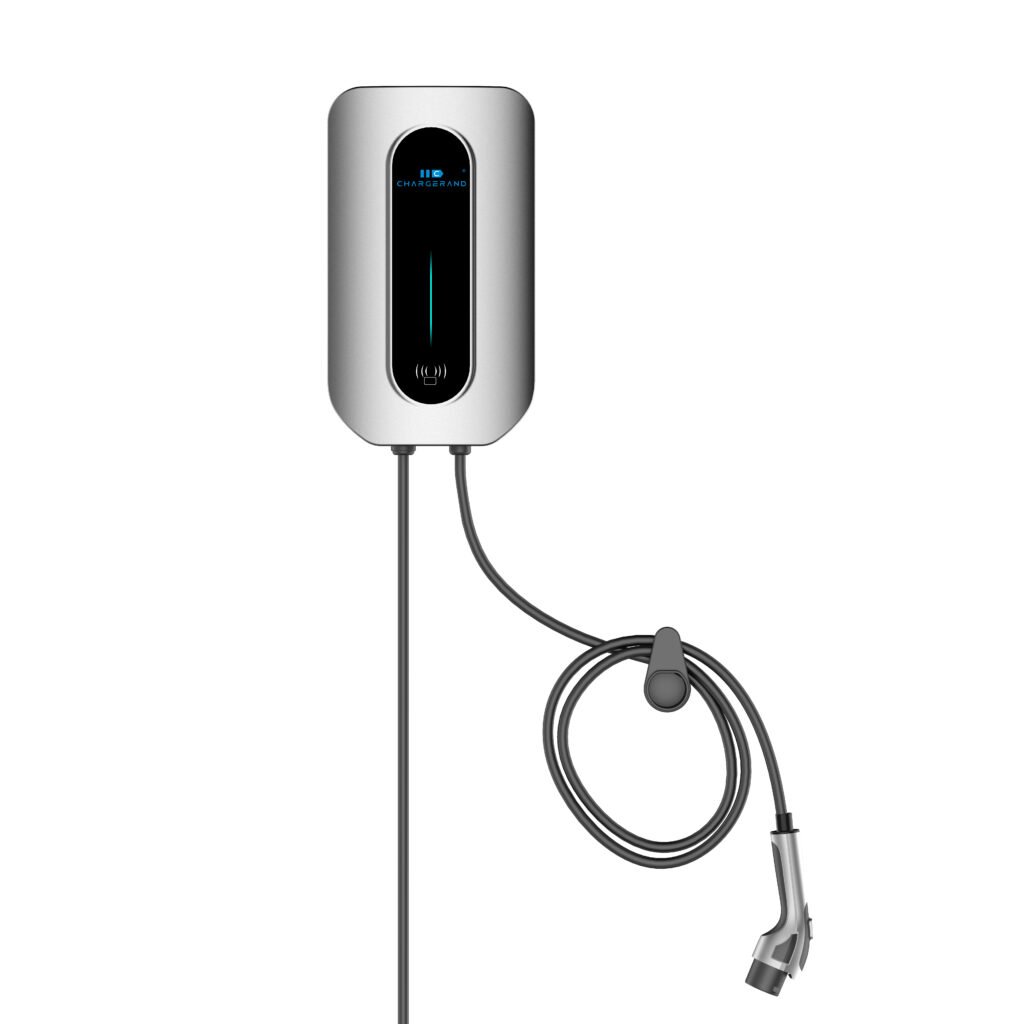

Wall Mounted AC 7KW 11KW 22KW Charging For EV

  • Simple Design lt has detection and protection functions such as overvoltage,undervoltage, overcurrent, output reverse connection, and leakage.
  • Flexible Payment Supports multiple payment methods, including plug-and-
    charge,swiping cards, scanning QR codes, etc.
  • Powerful Functionality Supports power-off resumption, and is scalable for orderly charging, scheduled charging, Bluetooth connection, Wi-Fi connection. It also supports online management, remote upgrade, and is compatible with 3.5KW/7KW/11KW/22KW output.
Contact Us
ParameterGEVA07220P(7KW)GEVAl1380P(11KW)GEVA22380P(22KW)
Rated Power7KW11KW22KW
Input Voltage230V±10%,single phase400V±15%,three phase;50Hz
Output Voltage230V±10%,single phase400V±15%,three phase;50Hz
Output Current0~32Amax
Charging ModeType 2
Protection LevelIP55
Operating Temperature20℃~+50℃
MaterialPC
Altitude≤2000m
Insulation Resistance>10mΩ
Connector TypeIEC62196 Type 2or Type 1plug,5m
Safety and ComplianceEC61851-1,IEC62311,IEC 62479,IEC62955,IEC61439-1/-7
Communication MethodBluetooth,WiFi,Ethernet,4G(Optional),CAN,RS485 for energy meter connection
CertificationCE  (SGS)
Lightning Protection LevelLevel3
Relative Humidity5%~95%
ProtectionOvercurrent,overvoltage undervoltage,integrated surge protection,PME  (UK)
Atmospheric Pressure70~106kPa
Internal RCDAC 30mA,DC 6mA
MountingWall or floor using a pedestal
Communication
Protocols		OCPP1.6J(Can be upgraded to OCPP 2.0.1 later)
Warranty36 months,warranty extension possible
Product Size325*190*75(L*W*H) mm
Wall mount back panel Size(Standard)70*100*2mm
Floor column Size (optional)80*40*1400(L*W*H)mm
Package Size420*280*240mm
Net Weight3.9Kg
Gross Weight4.425Kg

Hot Series

High-quality electric vehicle charging solution provider

Chargerand focuses on the research and development, production and sales of electric vehicle charging piles. We provide a variety of charging pile products such as AC and DC, suitable for various application scenarios. The products are efficient, intelligent and safe. We have a research and development team and cloud platform to help you efficiently manage charging pile operations.

Email Contact

Own R&D team, cloud platform

Our core strengths lie in:

  • Powerful R&D Capability: In-house development of charging stations and cloud platform, ensuring technological leadership.
  • Intelligent Cloud Platform: Real-time monitoring, remote management, and data analysis for enhanced operational efficiency.
  • Operational Analysis & Profitability: Providing professional operational data analysis to support your business objectives.”
